» Non Static

Does not collect dust or allergens..

» Fireproof

Vitreous enameled steel is totally incombustible, will neither ignite nor burn and will withstand continuous temperatures of up to +400°C. Architectural VE panels will, depending on the design and the nature of the backing materials, provide fire ratings of a min. of two hours. Higher fire ratings can be achieved. No toxic fumes are released. No staining from smoke and even direct contact with open flames. Any VE Signage or graphics included in the cladding project share the extreme resistance to temperature (hot or cold) and fire.

» Non Porous

Like glass, vitreous enamel is completely non porous which prevents harmful bacteria or residual chemicals from being absorbed into the enamel surface. When an enamel surface is cleaned with anti-bacterial solutions it is truly sterile and germ free.

» Printable VE

Vitreous enamel pastes are silkscreened or masked to create high resolution multicolored graphics which are fired and fused to the panel at 800⁰ Celsius. Images and graphics are vitreous enamel and therefore have the same durability and hygienic benefits as any VE plain color. Excellent for including signage or graphics in hygienic environments.

» UV Resistance

Extremely resistant. UV lights used in clean rooms for medical laboratories or manufacturing cause no yellowing, fading or degrading of the vitreous enamel surface at all.

» Electrical Safety

Vitreous enamel panels can have the dual purpose of insulating against electrical currents or, if the enamel is penetrated, can be used as an earth point. Dielectric strength of ordinary vitreous enamels will range from 200 to 500 volts per mil with an average of 4 to 6 mils total thickness.

» Environmental Safety

The production of VE panels is an ecologically friendly process that does not involve harmful substances. The panels are made from non toxic materials including glass, steel and calcium silicate. All materials are not harmful to the environment and are recyclable. The VE coating increases the lifespan of the original steel many times thereby reducing waste and the number of times the steel needs to be reprocessed. VE Panels release no toxic fumes in the event of a fire.

» Non stick, easy to clean

High lubricity, non stick and non porous make it very easy to clean with a mild soap solution or anti-septic chemical cleaners.

» High Impact Resistance

The physical strength of the steel, coating and panel backing enable vitreous enameled panels to withstand deformation and damage due to impact. Panels are quick to install and easily replaced.

» Lower Maintenance Costs

Non Stick and non static vitreous enamel attracts less dirt and harmful bacteria. Extremely high abrasive resistance ensures no scratching during regular cleaning cycles and therefore no loss in anti-bacterial quality of the smooth vitreous enamel coating. Panels can easily be kept sterile with no loss in quality over time.

» High Chemical Resistance

Vitreous enamels are formulated with relatively inert inorganic oxides. This provides an impervious surface that is highly resistant to chemicals that may be used in medical, manufacturing or convenience clean room environments. This includes: Strong Acids at any temperature up to 191⁰C (with the only exception of hydrofluoric acid). Alkalis : Up to maximum pH of 12 at 100⁰C. Also including organic acids and solvents, oils and soil corrosion.

» High Resistance to Abrasion

A combination of very high lubricity and extreme surface hardness gives vitreous enamel unusually high abrasive resistance when compared to other cladding surfaces. On the Moh Hardness Scale : Diamond =10, Aluminium or Sheet Steel=3 Resin Coatings = 2.5 -3 Vitreous Enamel = 5.5 to 6. This high abrasive resistance ensures no scratching during regular cleaning cycles and no loss in anti bacterial quality of the smooth vitreous enamel coating.

» FULL LIST OF VE QUALITIES

» click here for full list

Tough. Durable. Versatile.
The performance characteristics of vitreous enamel result in a material that will not rust, is resistant to chemical attack, abrasion and fire as well as being more durable than any other architectural cladding material. In addition its versatility enables custom designs of all shapes and dimensions, the use of graphics and logos as well as a virtually unlimited colour range.

Durability
Vitreous enameled steel panels are extremely durable and need very little maintenance and cleaning. They will retain their original colour throughout the normal expected life of a building. Exposure to extreme weather conditions and coastal environments does not affect their performance or appearance.

Chemical Resistance
Vitreous enameled steel is resistant to all organic solvents and has excellent resistance to atmospheric pollution, corrosion and degradation by the great majority of chemicals. It will not rust and is 100% water resistant.

Abrasion Resistance
Vitreous enameled steel is extremely abrasion resistant withstanding cleaning and most abrasive materials without affecting the coating. It will meet scratch resistance to Moh Scale 6.

Fire Proof
Vitreous enameled steel is totally incombustible, will neither ignite nor burn and will withstand continuous temperatures of up to +400°C. Architectural VE panels will, depending on the design and the nature of the backing materials, provide fire ratings of a min. of two hours. Higher fire ratings can be achieved.

Graffiti Resistance
Vitreous enamel panels have a non porous and solvent resistant surface making them ideal for use in public areas where unwanted graffiti, markers and sprayed paints can be easily removed.

NO FADING - UV Light Resistance
Vitreous enameled steel is completely resistant to ultra violet light and the original colours and surface finish will not deteriorate under continuous exposure to sunlight.

Impact Resistance
The physical strength of the steel, coating and panel backing enable vitreous enameled panels to withstand deformation and damage due to impact, chipping and surface damage. This is provided they have been correctly designed, manufactured and installed.

Thermal Shock Resistance
Vitreous enameled steel will withstand rapid cooling by water spray from +400°C to normal room temperatures over a 30 second period.

Safety
The resistance of vitreous enameled steel to impact and distortion under extreme temperatures provide further significant safety advantages in applications such as tunnels and claddings in public areas.

Colour Range
The range of colours for vitreous enamel is virtually unlimited. Existing colours can be matched which makes it ideal for refurbishment or replacement panel. If a hard sample cannot be supplied for matching we can reference the RAL Design or Pantone color ranges.

Appearance
Vitreous enameled steel is sterile, germ free, odorless and easy to clean. Combined with its other characteristics and a smooth colour fast surface, vitreous enameled panels provide unmatched visual appearance.

Hygienic
Non porous finish that doesn’t absorb bacteria and or allergens. Non stick, high gloss surface is very easy to clean. High resistance to cleaning chemicals and high abrasive resistance withstanding very intense regular cleaning with no loss in performance qualities.

Custom Designs
Vitreous enameled panels can be made in various shapes, sizes and configurations. Contact our Technical Advisory Service for further information.

Signage & Graphics
Logos, names and selected graphics can be fired onto the panels – these will have the same characteristics mentioned above and will maintain their appearance throughout their life.

Secure
VE Doors create lockable compartments for services, utilities, cleaning or tool storage as part of the cladding layout.

Sustainability
VE Coating increases the lifespan of the original steel many times over reducing the need to produce replacements. Both the VE steel and the vitreous enamel coating can be recycled and re-used to make VE panels again.

Economical
VE has a lifespan at least 4 times that of most other cladding products. It is the most durable and longest lasting surface coating. It is also non fading and has the highest abrasive resistance making it not only cheaper but looking better over its lifespan.

For any queries or more information please contact us at info@ceratec.com.hk

» click here for test reports

ITEM	TEST STANDARD	DESCRIPTION	TEST RESULT
1	BS 476: Part 4: 1970	Non Combustibility Test	Classification: Non Combustible
2	BS 476: Part 6: 1989	Fire Propagation Test	Fire Propagation Index I = 0; Subindices i1, i2, i3 = 0
3	BS 476: Part 7: 1997	Surface Spread of Flame Test	Classification: Class 1
4	BS 1344 Part 1	Resistance to Thermal Shock of Coating	Satisfactory
5	BS 1344: Part 2; ISO 2722:1973	Resistance to Citric Acid at room temperature	Class AA
6	BS 1344 Part 3	Resistance to Sulphuric Acid	Class AA (white panels)
7	BS 1344:1968: Part 4	Resistance to Abrasion	Rate of mass loss = 0.00963 g/min
8	BS 1344: Part 5: 1984	Resistance to Hot Detergent Solutions used for Washing Textiles Test	Satisfactory
9	BS 1344: Part 6: 1988	Resistance to Alkali	Satisfactory
10	BS 1344 Part 7: 1984	Resistance to Heat	No cracking, flaking or blistering or other surface damage
11	BS 1344: Part 8: 1984; ISO 2742:1983	Resistance to Boiling Citric Acid	Rate of mass loss = 15.1g/m2 for 2.5 hrs testing time
12	BS 1344: Part 9: 1987	Resistance to Boiling Water	Satisfactory
13	BS 1344: Part 10: 1987	Resistance to Condensing Hydrochloric Acid Vapour Test	Satisfactory
14	BS 1344: Part 17: 1975; ISO 2745: 1998	Resistance to Hot Sodium Hydroxide Solution Test	Satisfactory
15	BS 1344: Part 21: 1993	Resistance to Impact Pistol Test	Some powdering, but no spalling or chipping
16	ASTM B117 - 97	Salt Spray Test for 1000 hours	No discernible change
17	ASTM E350-95 and Laboratory In house Method	Carbon, Manganese, Phosphorous and Sulphur Content of VE Steel	Carbon < 0.01%; Manganese: 0.24%; Phosphorous: 0.009%; Sulphur: 0.008%
18	BS 4360:1986	Tensile Strength Test of Weldable Structural Steel Grade 43A	Complies
19	BS 1449: Part1: 1983	Tensile Strength Test of Low Carbon Steel Plate	Complies with Grade CR4 of BS1449
20		Moh's Hardness Scale	Result = 6
21	BS EN 10209:1996	Determination of Adherence Level of Enamel	Adherence Level 1
22	BS 3900:D5:1997; BS EN ISO 2813:2000	Specular Gloss (60 degrees)	Mean 95%
23	ASTM C 423 - 02	Sound Absorption	Complies

Vitreous enamel is completely non-porous and therefore does not absorb harmful bacteria or germs.
Having very high lubricity makes it difficult for dirt to stick to vitreous enamel and makes it very easy to clean. VE is non-static attracting no dust or allergens. High resistance to chemicals means vitreous enamel can withstand nearly all harsh laboratory and industrial chemicals (exception of hydrofluoric acid used for glass etching). Being non-porous, no residual chemicals are left keeping areas free of contaminants. Vitreous enamel’s unusually high scratch resistance keeps clean room surfaces “scratch-free” much longer than any other surfaces therefore preventing areas for germs to settle and maintaining its high performance.

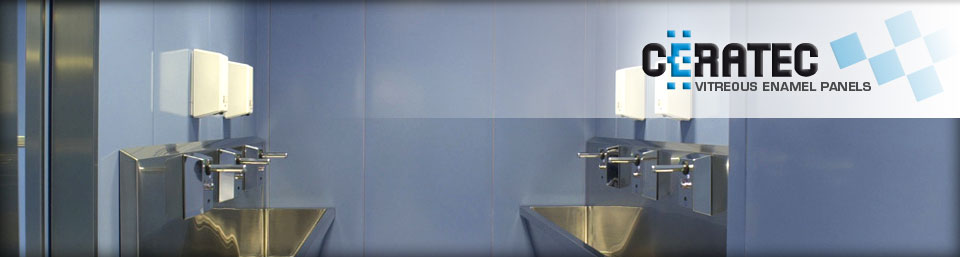

Ideal for use in operating theatres, laboratories, manufacturing (e.g. printed circuit board processing lines) as well as for high quality cladding in public washrooms. Vitreous enamel panels also create excellent doors and partitions for washroom and marine cubicles.

Manufacturing Clean Rooms

Washrooms and Cubicles

Medical Clean Rooms
