Light Gauge Panels

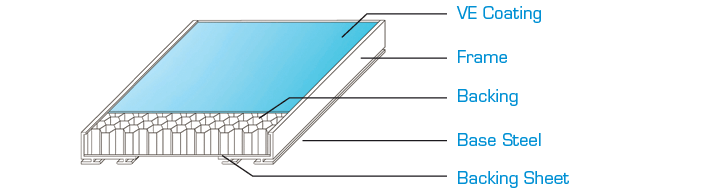

| Consisting Of The Following Parts: |
| VE Coating: Total coating thickness typically 75 to 275 microns with a min of 60 microns on internal faces. |
| Base Steel: max 0.7mm thickness |
| Backing: Typically aluminum honeycomb backing |
| Backing Sheet: Typically 0.5mm hot dip galvanised mild steel sealed on all sides. |
| Frame: natural anodized aluminium with installation ready fixing system |
| Panel Shapes & Sizes: |
| Max Height: 2800mm |
| Max Height: 1400mm |
| Flat Panels Only Weight: 12mm Calcium Silicate: 21kg/m2 |
| Main Applications – Interior Cladding System |
| Modern and sharp architectural designs |
| Commercial Building Halls and Entrances |
| Angular feature columns, Long flat elevations |
| Mass transit railway stations, Shopping centers and malls |
| Design Features |
| Suiting Interior applications. |
| Sharp architectural finish requirement. |
| Meets lower cost requirements with VE performance. |
| Suited to large flat elevations and angular feature columns. |
| Installation ready pre-designed fixing system fore easy installation and weight saving. |

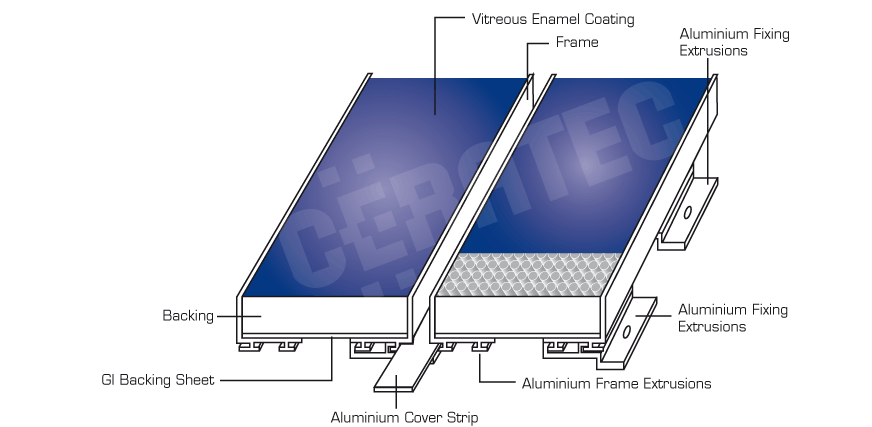

Fixing Systems
