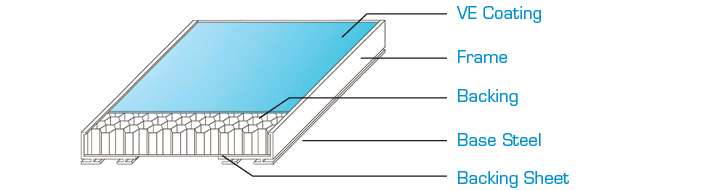

CONSISTING OF THE FOLLOWING PARTS:
VE Coating: typically between 175 and 350 microns
Base Steel: de-carbonized 0.7mm thickness
Backing: choice of calcium silicate or other depending on use
Backing Sheet: 0.5mm GI sheeting, glued and sealed

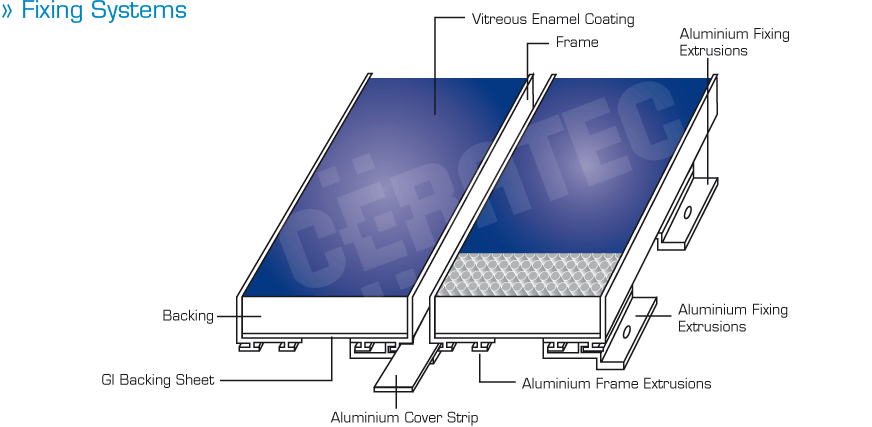

Frame: natural anodized aluminium with installation ready fixing system
PANEL SHAPES & SIZES:
Max Height: 2800mm
Max Height: 1400mm
Flat Panels Only

Weight: 12mm Calcium Silicate: 21kg/m2

MAIN APPLICATIONS - INTERIOR CLADDING SYSTEM
Modern and sharp architectural designs
Commercial Building Halls and Entrances
Angular feature columns, Long flat elevations
Mass transit railway stations, Shopping centers and malls
DESIGN FEATURES
Suiting Interior applications.
Sharp architectural finish requirement.
Meets lower cost requirements with VE performance.
Suited to large flat elevations and angular feature columns.
Installation ready pre-designed fixing system fore easy installation and weight saving.
